What is the Micrometer least count ?

The micrometer least count is 0.01 mm, but the micrometer least count may vary depending on the specific type and model of the micrometer being used. Some micrometers, especially electronic ones, may have a finer least count, such as 0.001mm, So lets understand each type carefully with their particular least count

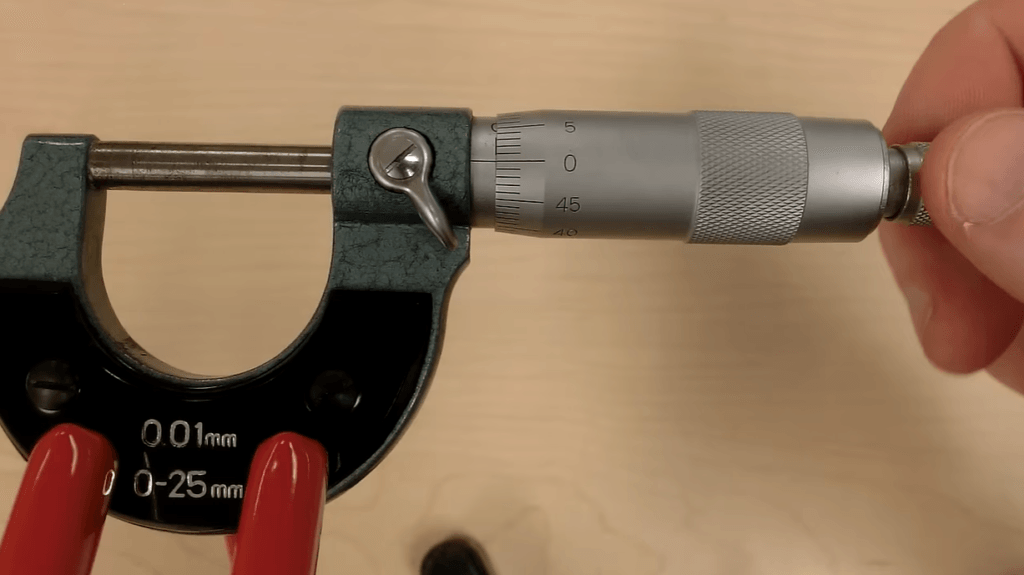

Micrometer least count is 0.01 mm

List of Various Micrometer least counts

Micrometer TypeLeast Count
Outside Micrometer0.01 mm to 0.001 mm
Inside Micrometer0.01 mm
Depth MicrometerAround 0.01 mm
Digital Micrometer0.001 mm
Blade Micrometer0.01 mm
Screw Thread Micrometer0.01 mm
Point Micrometer0.01 mm
Vernier Micrometer0.02 mm
Universal/Multi-Anvil MicrometerAround 0.01 mm
Analog MicrometerTypically 0.01 mm

What is the Definition of least count ?

The least count refers to the smallest value that can be measured accurately by a measuring instrument. It represents the precision of the instrument, indicating the smallest incremental measurement it can detect or display.

For example If a ruler has divisions of millimeters, its least count would be 1 millimeter, as it can measure down to the nearest millimeter. In another instance, if a micrometer has divisions of 0.01 millimeters, Then micrometer least count would be 0.01 millimeters, allowing for more precise measurements

ALSO READ UNDERSTAND THE CONCEPT OF VERNIER CALIPER LEAST COUNT

To learn the calculation of micrometer least count, you need to understand, what is micrometer, the parts of micrometer, How to use a micrometer and applications of it

What is Micrometer ?

The least count refers to the smallest value that can be measured accurately by a measuring instrument. It represents the precision of the instrument, indicating the smallest incremental measurement it can detect or display.

For example If a ruler has divisions of millimeters, its least count would be 1 millimeter, as it can measure down to the nearest millimeter. In another instance, if a micrometer has divisions of 0.01 millimeters, Then micrometer least count would be 0.01 millimeters, allowing for more precise measurements

Standard Parts of micrometer:

Parts of micrometer
  1. Frame: The frame holds the anvil and barrel in constant relation to each other. It’s typically a C-shaped body.
  2. Anvil: This is the fixed part against which the object being measured is placed.
  3. Spindle or Barrel: It moves towards the anvil when the thimble is rotated.
  4. Thimble: The thimble is rotated to move the spindle, and it often contains the ratchet stop for precise control of the applied pressure.
  5. Sleeve: The sleeve houses the barrel and spindle assembly.
  6. Screw(Ratchet): The screw provides the fine adjustment needed for accurate measurements.

Watch this video to understand, How to use a Micrometer practically

When and where do we use a micrometer ? (Applications)

Micrometers are employed wherever precise dimensional measurements are required, ensuring accuracy in various fields ranging from manufacturing to research and development.

  1. Manufacturing Industry: Micrometers are extensively used in manufacturing for precise measurements of components’ dimensions.

  2. Engineering: They play a vital role in engineering applications, including mechanical, electrical, and civil engineering, for accurate measurements during design, production, and quality control processes.

  3. Science Laboratories: Micrometers are commonly found in science labs for measuring small objects with precision, such as the diameter of wires, thickness of materials, and other dimensional parameters.

  4. Metalworking and Machining: In metalworking and machining industries, micrometers are indispensable for measuring the dimensions of machined parts to ensure they meet precise specifications.

  5. Automotive Industry: Micrometers are utilized in the automotive sector for measuring engine parts, shafts, bearings, and other critical components to ensure accuracy and reliability.

  6. Aerospace and Defense: In aerospace and defense industries, micrometers are essential for measuring precision components used in aircraft, missiles, and other aerospace systems

Formula to calculate micrometer least count :

To calculate the micrometer Least count, you can use the formula:

LC = PITCH / NUMBER OF CIRCULAR DIVISIONS

  • LC = Least count
  • Pitch = It is the distance moved by the screw per revolution (typically the smallest division on the main scale).
  • Number of circular divisions = The number of divisions on the circular scale

For example:- if the pitch of the micrometer screw gauge is 1 mm and there are 100 circular divisions, the least count would be

Least count = 1/100 =0.01 mm
