In this blog, we will understand the types of live loads in a detailed way so that, there will be no doubts left after reading this article, if you still have any doubts after reading this article, make sure you drop a comment so that it can help us in improving the quality of the article

What is Live load?

A live load refers to the dynamic or movable loads that a structure or component is designed to support during its use. These loads can change in magnitude and location over time. Live loads typically include people, furniture, vehicles, or other movable objects that a structure encounters during normal operations.

Types of live loads

List of types of live loads:

  1. Uniformly Distributed Live Load (UDL)
  2. Concentrated or Point Live Load
  3. Moving or Rolling Load
  4. Impact Load
  5. Roof Live Load
  6. Environmental Live Load
  7. Crowd Load
  8. Seismic Live Load
  9. Special Loads

Explanation of each types of live loads

1. Uniformly Distributed Live Load (UDL):

  • Definition: Load spread evenly over an area or length of a structure.
  • Example: People standing on a floor, furniture in a room.
  • Relevance: Commonly used in floor and roof design.
Uniform Distributed Load

2. Concentrated or Point Live Load:

  • Definition: Load applied at a single, specific point.
  • Example: A heavy safe placed on the floor or a vehicle parked at a single spot.
  • Relevance: Important for designing localized supports like beams and slabs.
Point Load

3. Moving or Rolling Load:

  • Definition: Load that changes position over time.
  • Example: Cars on a bridge or cranes in industrial spaces.
  • Relevance: Used in the design of bridges, railways, and tracks.

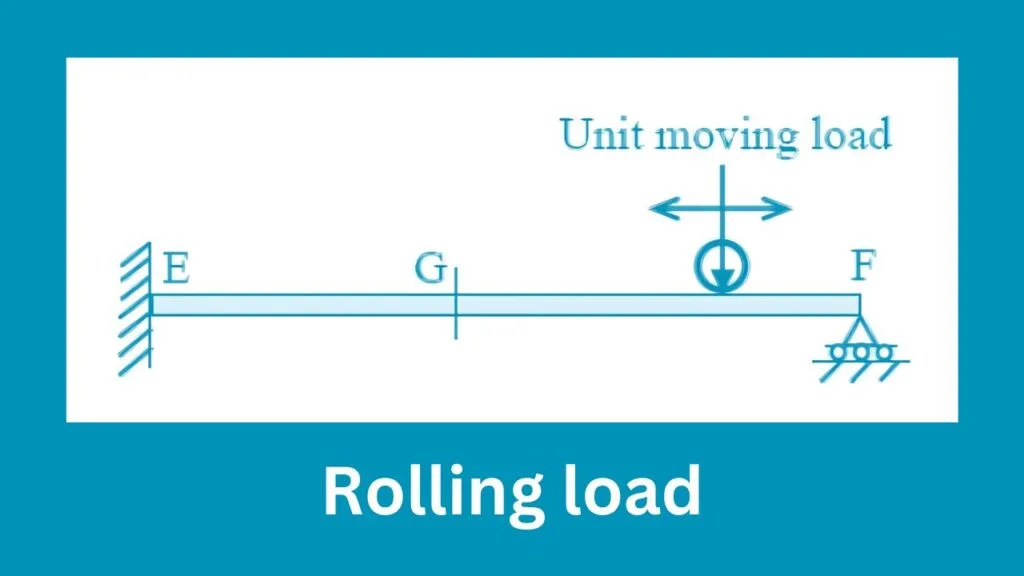

Rolling Load

4. Impact Load:

  • Definition: A sudden or dynamic load acting for a short time.
  • Example: Elevator load or heavy equipment vibrations.
  • Relevance: Requires additional safety considerations for transient effects.
Impact Load

5. Roof Live Load:

  • Definition: Loads applied to roofs temporarily, such as by people or equipment.
  • Example: Workers repairing the roof or cleaning equipment.
  • Relevance: Ensures roofs are safe for maintenance activities.

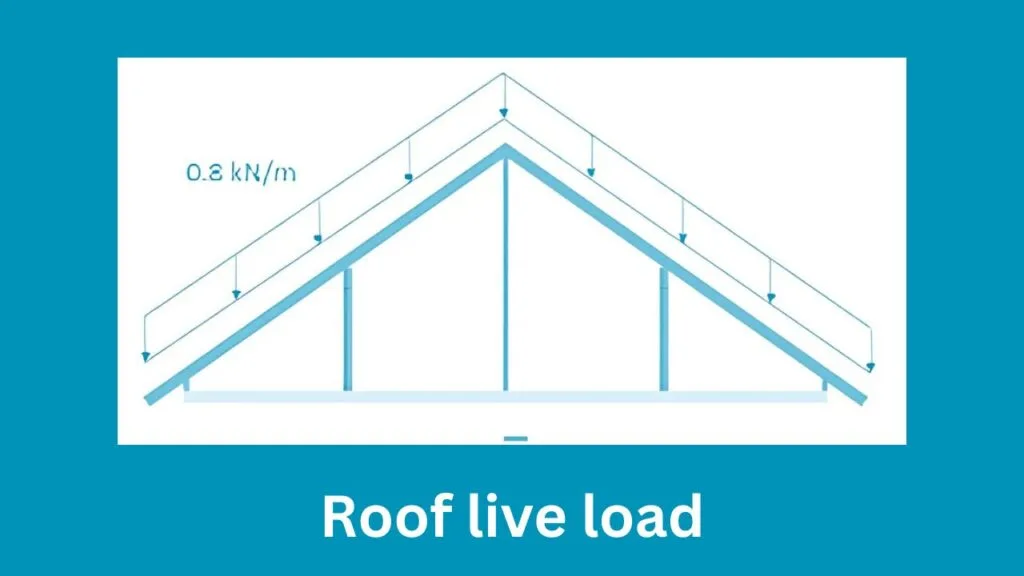

Roof Live Load

6. Environmental Live Load:

  • Definition: Loads caused by temporary natural factors like wind or rain.
  • Example: Rainwater on a flat roof or wind pressure on the structure.
  • Relevance: Combined with other load types in structural designs.
Environmental Live Load

7. Crowd Load:

  • Definition: Load caused by a large number of people gathered in one place.
  • Example: Concert halls, stadiums, or theaters during events.
  • Relevance: Design values are higher to account for crowd density.
Crowd Load

8. Seismic Live Load:

  • Definition: Transient loads caused by earthquake vibrations.
  • Example: Shaking furniture and people during seismic activity.
  • Relevance: Typically combined with other loads during earthquake-resilient designs.

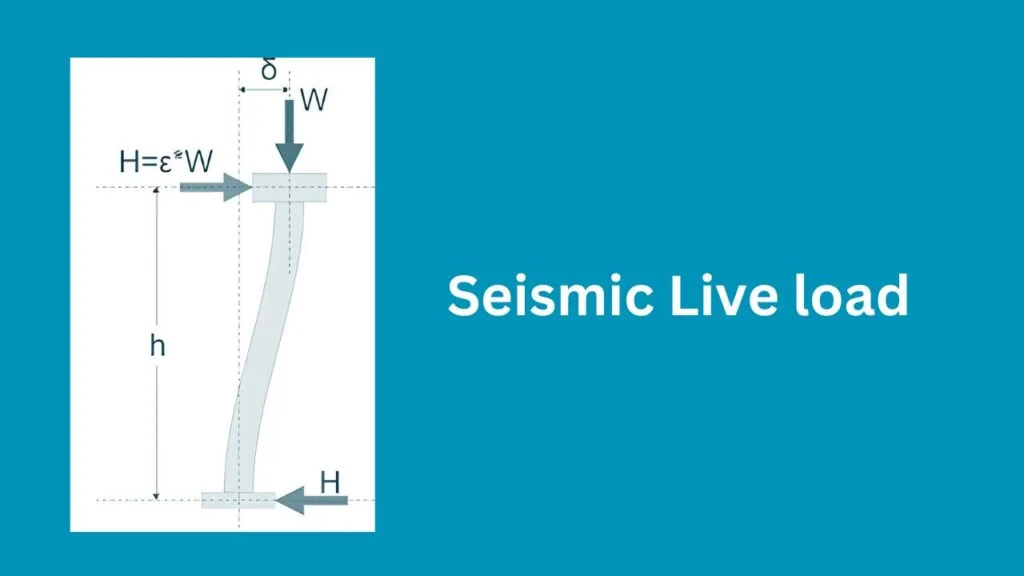

Seismic Live Load

9. Special Loads:

  • Definition: Loads specific to the building’s purpose or use.
  • Example: Library book stacks, hospital machinery, or industrial equipment.
  • Relevance: Requires custom consideration for unique use cases.

Why is it important to know all the types of live loads?

  1. Ensures structural safety and prevents collapse.
  2. Complies with building codes and regulations.
  3. Prevents overdesign or underdesign of structures.
  4. Accommodates different usage scenarios (e.g., residential, commercial).
  5. Enhances the long-term performance and durability of structures.
  6. Reduces maintenance and repair costs.
  7. Optimizes resource allocation for cost-effective designs.
  8. Prepares structures for dynamic and unpredictable forces.
  9. Accounts for special cases like earthquakes or construction loads.
  10. Improves the overall reliability and functionality of the structure.
