Mild steel is often described as the backbone of the industrial world. Its balance of affordability, strength, and machinability makes it a go-to material for everything from construction to automobile manufacturing. Understanding mild steel and its applications is crucial for informed material choices, whether you’re a student, engineer, architect, or hobbyist.
In this comprehensive guide, we’ll explain what mild steel is, explore its properties and types, compare it with other steel forms, and answer frequently asked questions. Let’s dive into the metal that shapes our modern world.
What is Mild Steel?
Mild steel is a type of low carbon steel that contains between 0.05% and 0.25% carbon. It is a ferrous metal primarily composed of iron and is known for its high ductility, machinability, and weldability. It’s used in various industries due to its low cost and ease of fabrication.
Unlike stainless steel or high-carbon steel, mild steel lacks chromium, which means it can rust if not treated. However, for many applications where corrosion resistance is not a major concern, its strength and affordability outweigh this drawback.
Why is it Called “Mild” Steel?
The term “mild” refers to the low carbon content, which softens the steel and allows it to bend, cut, and weld more easily than harder steels.

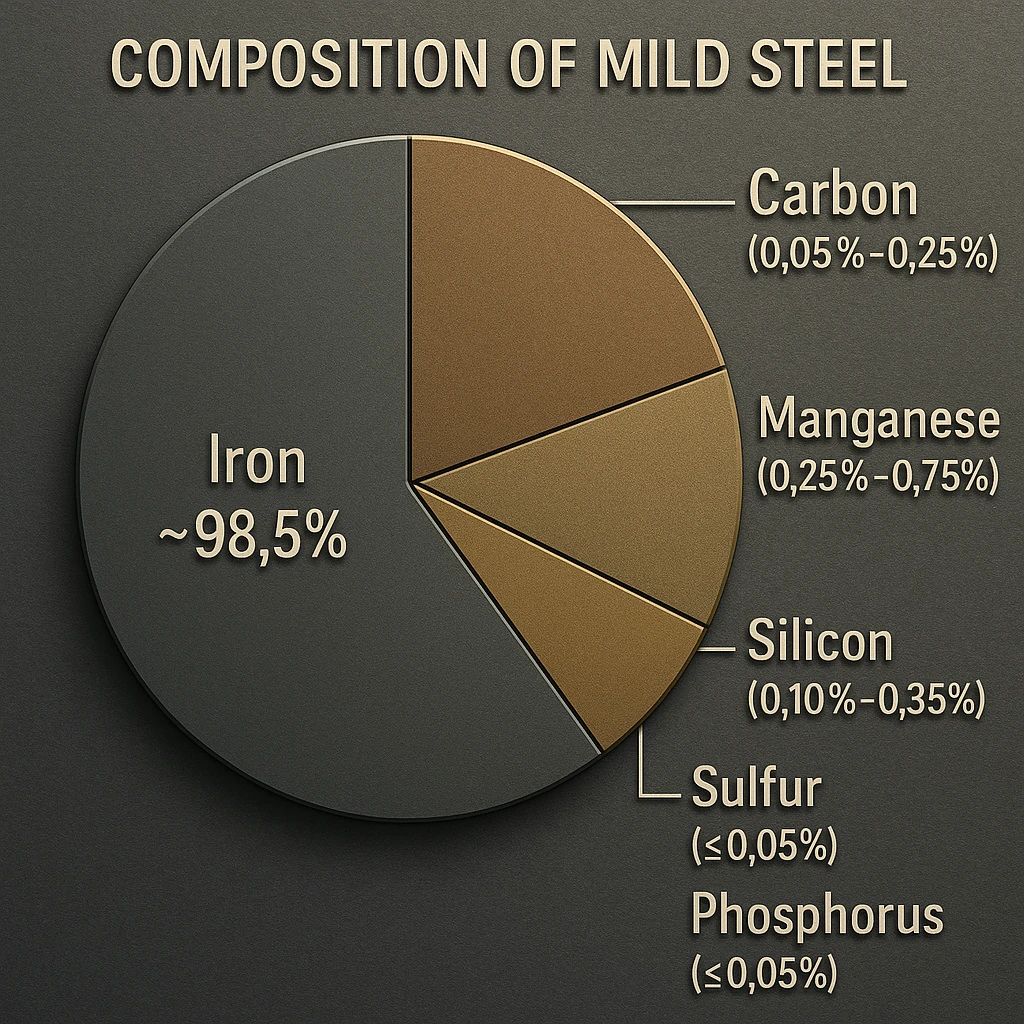

Chemical Composition of Mild Steel
Here’s a quick breakdown of the general composition of mild steel:
- Carbon: 0.05% to 0.25%
- Manganese: 0.25% to 0.90%
- Silicon: up to 0.40%
- Sulfur and Phosphorus: Less than 0.05% each
This composition is ideal for applications requiring strength without brittleness, making it perfect for shaping, rolling, and welding.

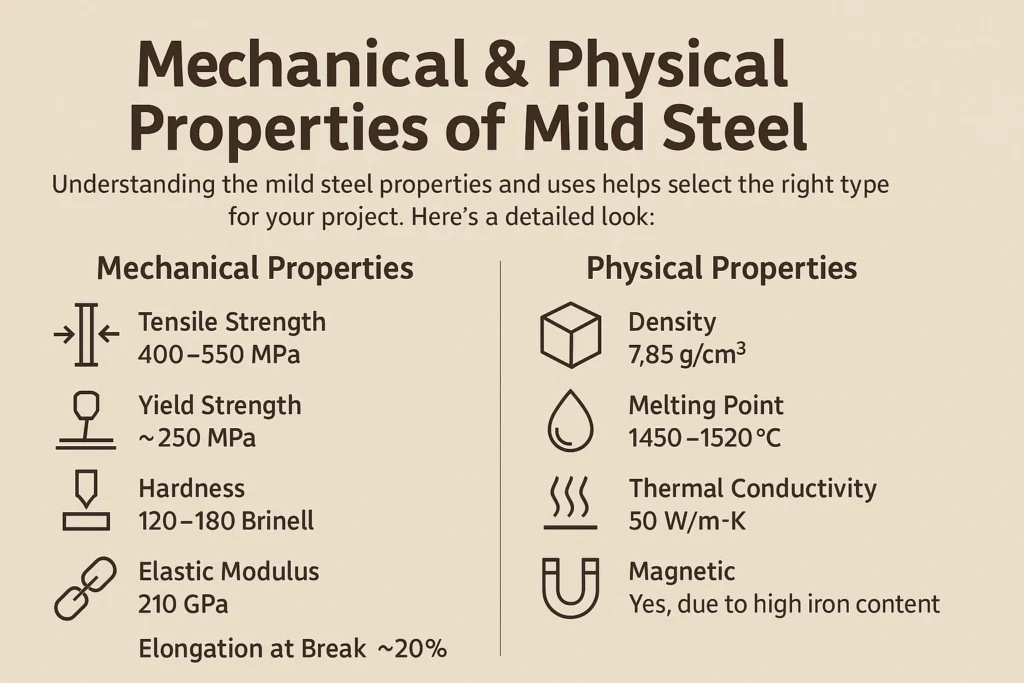

Mechanical & Physical Properties of Mild Steel
Understanding the mild steel properties and uses helps select the right type for your project. Here’s a detailed look:
Mechanical Properties
- Tensile Strength: 400–550 MPa
- Yield Strength: ~250 MPa
- Hardness: 120–180 Brinell
- Elastic Modulus: 210 GPa
- Elongation at Break: ~20%
Physical Properties
- Density: 7.85 g/cm³
- Melting Point: 1450–1520°C
- Thermal Conductivity: 50 W/m·K
- Magnetic: Yes, due to high iron content
Also read: Stress-strain curve for Mild steel
Types of Mild Steel
Mild steel is available in different forms, depending on processing and end-use:

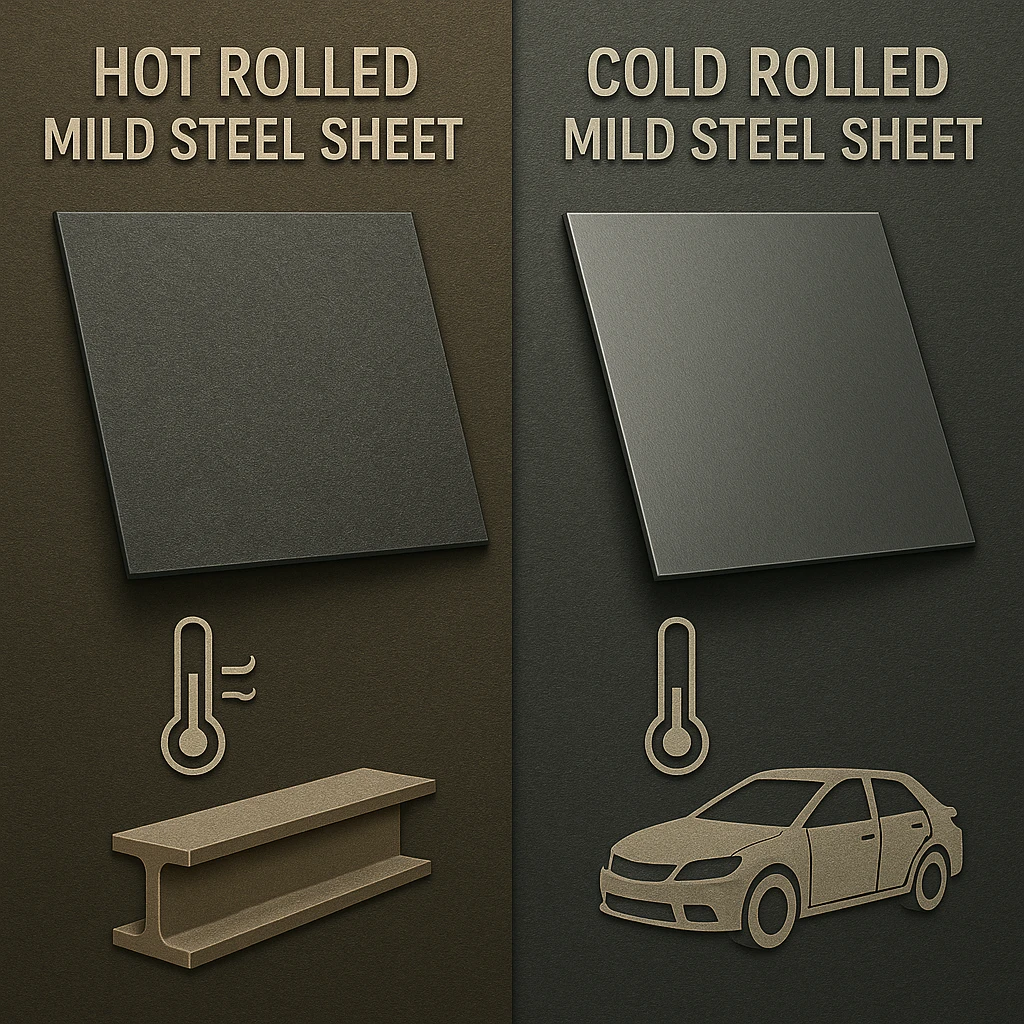

🔹 Hot Rolled Mild Steel
- Rolled at high temperatures
- Rough surface finish
- Common in construction beams and heavy machinery
🔹 Cold Rolled Mild Steel
- Rolled at room temperature
- Smooth surface and higher strength
- Used in precision applications like car panels and appliances
🔹 Mild Steel Plates & Sheets
- Used in shipbuilding, bridges, tanks
🔹 Mild Steel Bars (MS Bars)
- Used in reinforced concrete structures, fencing
🔹 Mild Steel Pipes and Tubes
- Ideal for water, oil, and gas transport in industrial applications
Top Applications of Mild Steel
One of the most common uses of mild steel is in structural and fabrication projects. Here are the primary industries using it:
1. Construction and Infrastructure
- Structural frameworks
- Rebars and beams
- Roofing and fencing
- Bridges and foot overpasses
2. Automotive and Transport
- Car body panels
- Truck frames and chassis
- Exhaust systems
3. General Fabrication and Engineering
- Machine parts
- Shafts, gears, bolts, and nuts
- Agricultural equipment
4. Household and Furniture
- Metal furniture
- Security grills and gates
- Kitchen utensils
5. Pipelines and Water Systems
- Mild steel pipes are used for plumbing, water lines, and HVAC ducts.
Benefits of Using Mild Steel
Mild steel’s popularity is based on several key advantages:
✅ Affordable and Easily Available
It is widely produced and more cost-effective than other alloys.
✅ Highly Workable
Its low carbon content makes it ideal for bending, drilling, cutting, and welding.
✅ Recyclable and Eco-Friendly
Mild steel is 100% recyclable without degrading its quality, making it a sustainable material.
✅ Versatile
From skyscrapers to home appliances, mild steel fits in almost everywhere.

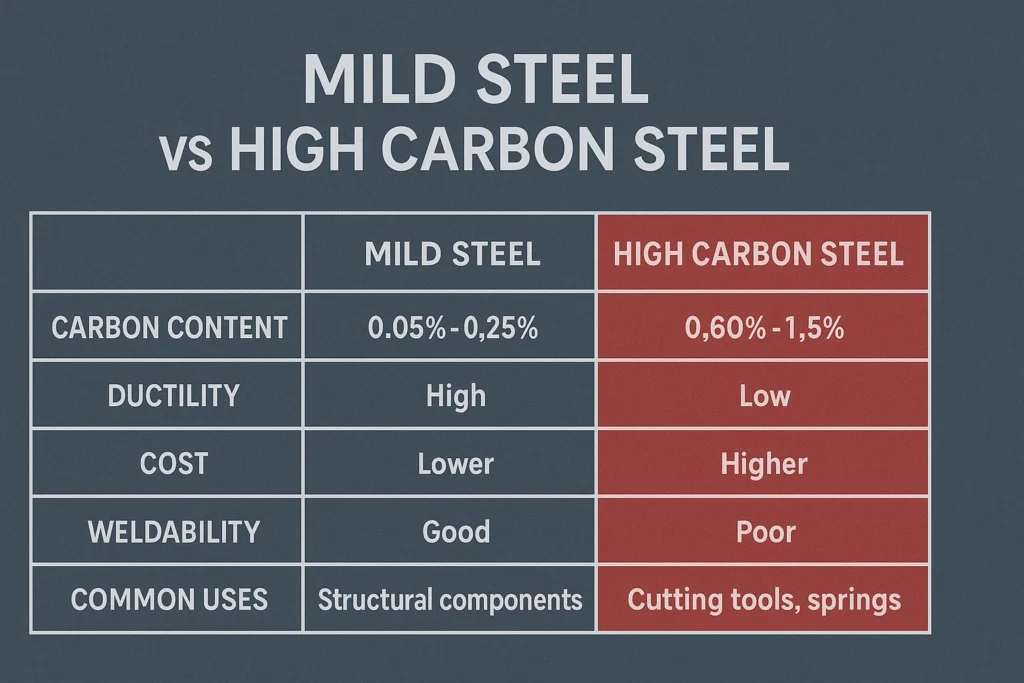

Difference Between Mild Steel and Carbon Steel
Though often confused, mild steel is just one category under carbon steel. Here’s how they differ:
| Property | Mild Steel (Low Carbon) | High Carbon Steel |
|---|---|---|
| Carbon Content | 0.05% – 0.25% | 0.6% – 1.5% |
| Ductility | High | Low |
| Strength | Moderate | High |
| Weldability | Excellent | Difficult |
| Corrosion Resistance | Low | Low (unless alloyed) |
| Common Use | Construction, Auto | Cutting tools, Springs |

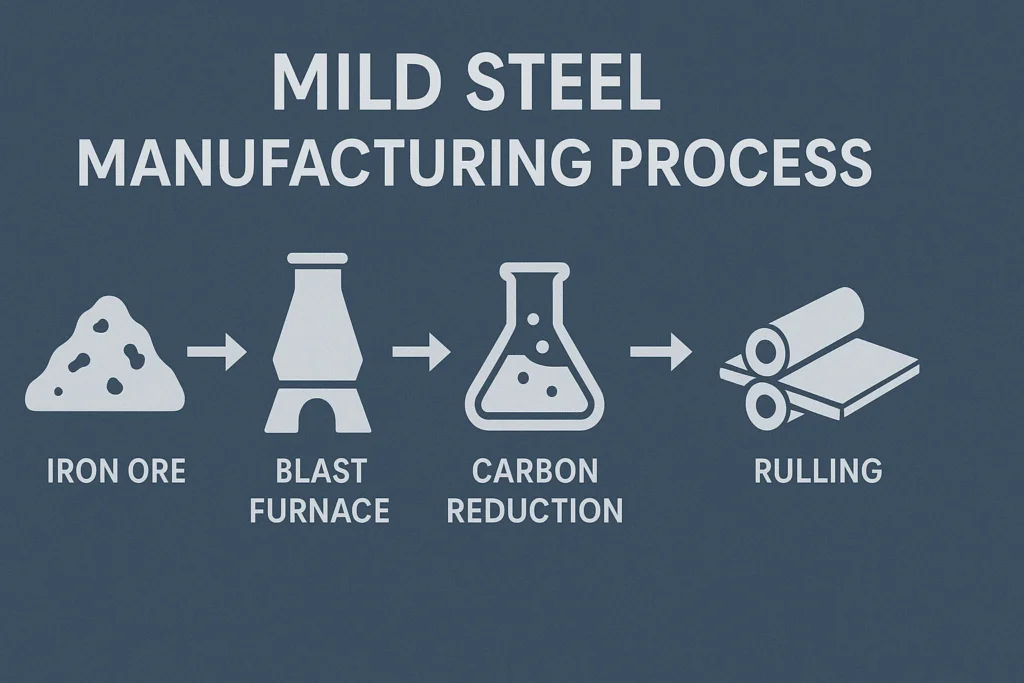

How is Mild Steel Manufactured?
The production process involves several steps:
1. Mining and Smelting
In mining and smelting, the Iron ore is extracted and melted in a blast furnace with coke and limestone.
2. Carbon Adjustment
The carbon content is reduced to required levels in a basic oxygen furnace.
3. Forming and Rolling
Molten steel is cast into billets, slabs, or blooms and then hot or cold rolled into the desired shape.
Protecting Mild Steel from Corrosion
Since mild steel is prone to rusting, it is often protected using various techniques:
- Galvanizing: Coating with zinc
- Painting: Industrial-grade anti-corrosive paints
- Powder Coating: Durable and decorative finish
- Oil or Grease Coating: For temporary protection
Topics covered
- mild steel properties and uses
- advantages of mild steel in manufacturing
- best applications of mild steel in construction
- difference between mild steel and carbon steel
- how to prevent rust on mild steel
FAQs About Mild Steel
1. What is the main advantage of mild steel?
The biggest benefit is its balance between strength and flexibility at a low cost.
2. Can mild steel rust easily?
Yes. Since it lacks chromium, mild steel can corrode if not treated or coated.
3. Is mild steel safe for structural construction?
Absolutely. It’s commonly used in beams, columns, and frames due to its reliability.
4. Can you weld mild steel at home?
Yes, it can be easily welded using MIG, TIG, or arc welding methods.
5. Is mild steel magnetic?
Yes, due to its high iron content, mild steel is magnetic.
6. Can mild steel be used in marine environments?
Not without protection. It requires galvanization or other coatings to resist seawater corrosion.
Use Cases: Where You See Mild Steel Every Day
- The frame of your car
- Metal fences and gates
- Window grills and stair railings
- Bridges and flyovers
- Office desks and chairs
Conclusion: Why Mild Steel is the Smart Choice
From skyscrapers and vehicles to tools and kitchen equipment, mild steel plays an indispensable role in modern development. It offers a perfect blend of strength, malleability, and affordability. Though it may lack the shine or corrosion resistance of stainless steel, its cost-efficiency and ease of fabrication make it the preferred material in many industries.
Thinking of using mild steel for your next project?
Always consult a professional supplier to choose the right type and grade. Whether you’re building a home, designing machinery, or fabricating industrial parts, mild steel delivers unmatched versatility
