In this blog, we will understand: what does the salt bridge do?, what exactly the salt bridge is. And apart from this, we will understand the definition of salt bridge in a bookish way too,

To get strong understanding of a salt bridge read the complete blog

Let’s begin with the bookish way

What is a salt bridge?

A salt bridge is a device used in electrochemical cells to maintain electrical neutrality by allowing the transfer of ions between the two half-cells.

Now lets understand the concept with an example

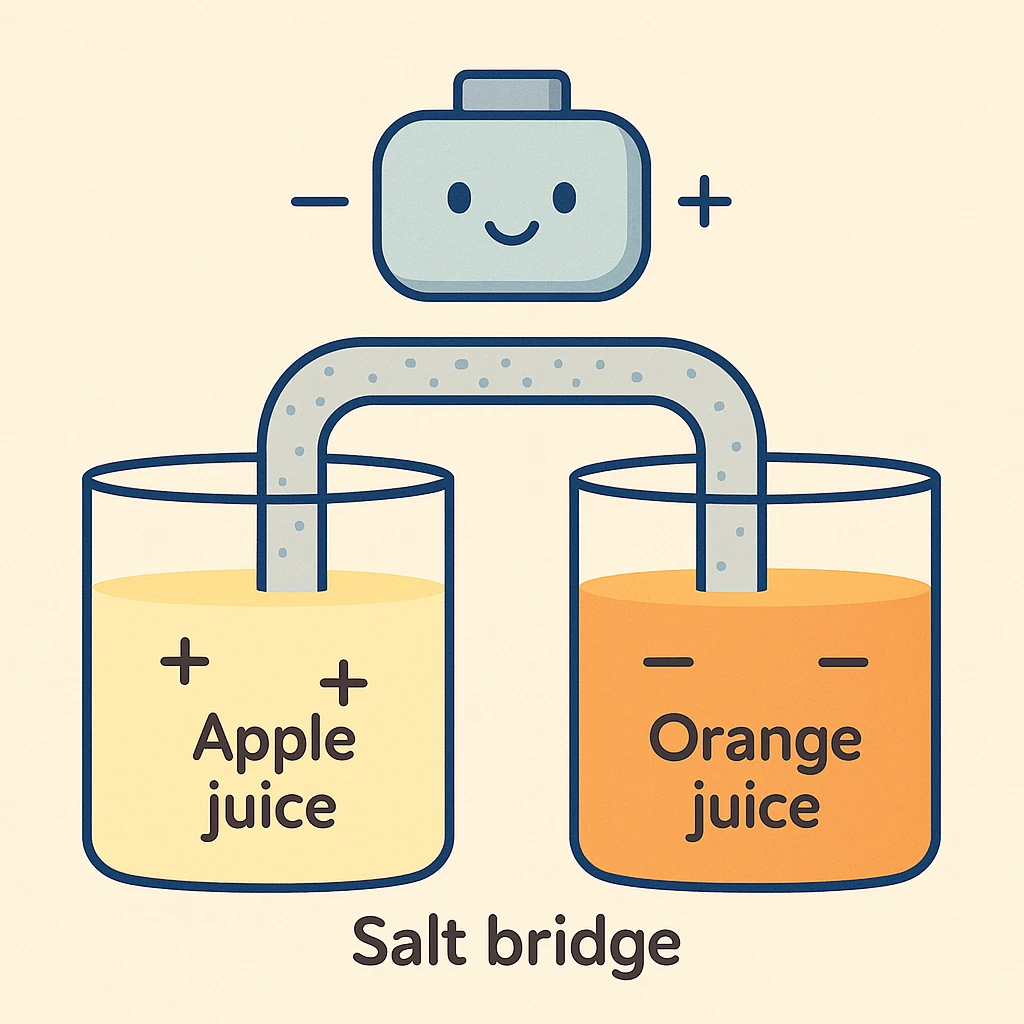

🧪 Imagine This:

You have two cups of juice.
One cup is apple juice and the other is orange juice.

Now, imagine you put a special straw in each cup and connect them with a wire. This setup is like a battery.

But wait! Something is missing…

🚧 What’s the Problem?

When the battery starts working, tiny things called charges start building up in the cups.
One cup gets too many + charges, and the other gets too many − charges.

And just like how you get grumpy when your toy has too many pieces on one side, the battery stops working if this charge pile-up continues.

🧂 Here Comes the Salt Bridge!

A salt bridge is like a small pipe filled with salty jelly (not tasty though! 😝).
It connects both cups from the sides.

This bridge lets the tiny charges move so both cups stay happy and balanced.
It’s like sharing toys between friends so no one gets too many or too few.

In Short:

A salt bridge helps a battery keep working by balancing the charges in both parts. It’s like a helper that keeps everything fair and smooth.

Now you have understood what is a salt bridge, let’s get into what exactly a salt bridge does

What does the salt bridge do in real life? purpose

🔬 What a Salt Bridge Does in Real Life (Upgraded with Facts):

1. Maintains Electrical Neutrality (⚖️):
   • In electrochemical cells, redox reactions generate a flow of electrons from the anode (where oxidation happens) to the cathode (where reduction happens).
   • This electron flow creates a charge imbalance: the anode solution becomes positively charged, and the cathode solution becomes negatively charged.
   • A salt bridge allows inert ions (like K⁺ and NO₃⁻ from KNO₃) to migrate and balance these charges, preventing the cell from reaching electrical equilibrium — which would otherwise stop the reaction.
2. Completes the Circuit (🔁):
   • Like wires allow electrons to flow, a salt bridge completes the internal ionic circuit, enabling the continuous flow of electrons in the external circuit (what powers your device).
3. Prevents Liquid Mixing (🧃🚫):
   • The salt bridge separates the two different electrolyte solutions to avoid direct mixing, which could cause precipitation reactions or side reactions that ruin the battery.
4. Made of Inert Electrolytes (🧪):
   • Common electrolytes: Potassium chloride (KCl), Potassium nitrate (KNO₃), or Sodium sulfate (Na₂SO₄) — chosen because they don’t react with either half-cell.
   • These are typically in gel form (like agar-agar or gelatin) or in a porous paper soaked in salt solution.
5. Essential for Galvanic Cells (📱🔋):
   • Without a salt bridge, a galvanic (voltaic) cell — the kind used in real-life batteries like the Daniell cell — would stop producing electricity in just a few seconds due to charge imbalance.

⚡ Real-Life Fun Facts:

• The salt bridge doesn’t carry electrons — only ions. Electrons move through the wire, not the bridge!
• In industrial setups, instead of a salt bridge, porous membranes or ion-selective membranes are used for large-scale electrochemical reactions.
• Lava lamps or molten salt batteries use a similar concept of ion flow across boundaries — just without a visible “bridge.”

What is a salt bridge in a water softener?

When we hear “salt bridge,” we often think of science labs and chemistry, but in a water softener, a salt bridge means something very different — and it can actually stop your softener from working properly.

Let’s break it down:

🧱 What Is a Salt Bridge, Really?

A salt bridge is a hard, crusty layer of salt that forms inside the brine tank of your water softener.
It looks like the tank is full of salt, but underneath this layer… there’s an empty space. No salt is touching the water at the bottom.

And that’s a big problem.

🧪 Why Does It Matter?

Your water softener uses salt to make brine (a saltwater solution). This brine is needed to clean and recharge the resin beads inside the softener — the beads that remove hardness from your water.

But if there’s a salt bridge, the salt is not dissolving into the water. That means no brine is being made.

Without brine, the system can’t regenerate, and your water starts feeling hard again — more soap scum, dry skin, clogged showerheads, and white scale on taps.

❓How Do You Know There’s a Salt Bridge?

Here are a few clues:

• You still have hard water, even though the softener looks full of salt.
• The salt level isn’t going down, even after several days or a week.
• You tap the salt with a stick, and it feels hollow underneath.
• Water level in the tank is unusually high (brine not being drawn correctly).

🧂 What Causes Salt Bridges?

1. High Humidity – Moisture makes salt clump and harden.
2. Low-Quality Salt – Powdery or dirty salt leaves behind residues that harden over time.
3. Overfilling the Salt Tank – Too much salt can prevent even mixing and cause bridging.
4. Lack of Maintenance – If the salt isn’t stirred or checked regularly, a bridge can form quietly.

🔨 How to Fix a Salt Bridge:

1. Turn off the softener.
2. Use a broom handle or long stick to gently poke through the salt layer.
   • Be careful not to damage the tank or the float system inside.
3. Break up the hardened salt and remove chunks if needed.
4. Scoop out any mushy or dirty salt at the bottom.
5. Refill with clean, high-quality salt pellets.
6. Run a manual regeneration cycle to reset the system.

✅ How to Prevent It in the Future:

• Only fill the tank halfway with salt — never overfill.
• Use high-purity salt pellets instead of powdery crystals.
• Stir the salt occasionally to keep it loose.
• Check the tank every few weeks, especially in humid climates.
• Keep the area around the softener dry and ventilated.
