What is Necking in Stress Strain Curve? A Complete Guide
When analyzing the mechanical properties of materials, one essential concept engineers and material scientists encounter is necking. But what is necking in stress strain curve, and why is it significant in material behavior analysis? This blog post dives deep into the topic, breaking down when necking happens, what it indicates about a material, and how it is visualized in stress-strain diagrams.
Understanding the Stress-Strain Curve
The stress-strain curve is a graphical representation of a material’s response to stress (force per unit area) and strain (deformation per original length) during a tensile test. It reveals various mechanical properties, such as:
- Elastic limit
- Yield strength
- Ultimate tensile strength (UTS)
- Fracture point
Each region on the curve provides insights into how a material behaves under load, from elastic deformation to eventual fracture.
What is Necking in Stress Strain Curve?

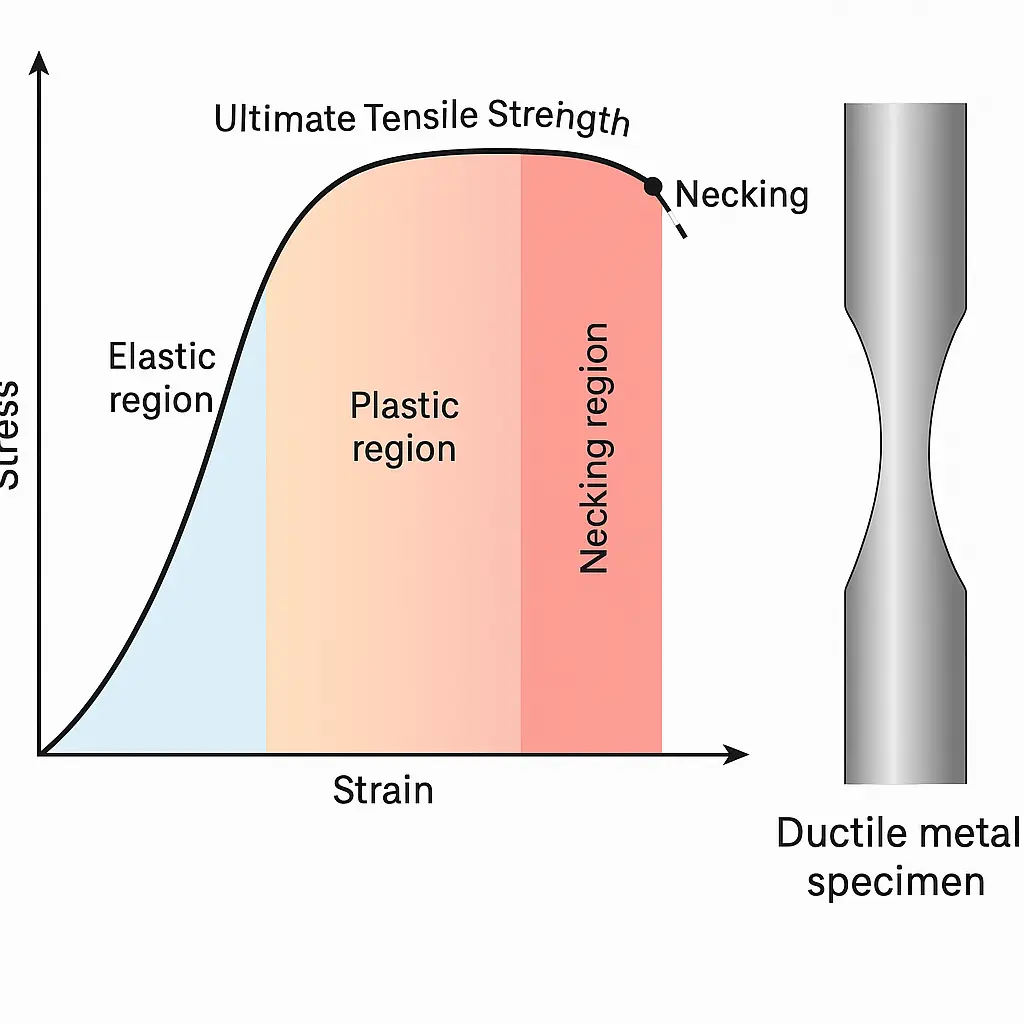

Necking refers to the localized reduction in cross-sectional area of a ductile material during a tensile test, occurring after it has reached its ultimate tensile strength (UTS). In this region, the material no longer stretches uniformly; instead, it begins to thin out at one particular spot—this is the neck.

Key Characteristics of Necking:
- Begins after the UTS point on the stress-strain curve
- Marks the onset of instability in the material
- Localized deformation causes strain to concentrate in one area
- Eventually leads to fracture of the specimen
Where Does Necking Occur on the Stress-Strain Curve?
Necking happens right after the peak point, where the curve reaches the UTS. From there:
- Stress appears to decrease (on engineering stress-strain curves)
- Strain continues to increase until fracture
- Material weakens due to the decreasing load-bearing area
Note: On a true stress-strain curve, stress may continue to rise during necking because it accounts for the actual, reduced area.
Ductile vs Brittle Materials: Necking Behavior
Necking is a phenomenon typically observed in ductile materials such as:
- Mild steel
- Copper
- Aluminum
- Polymeric materials like nylon
In contrast, brittle materials (e.g., cast iron, glass):
- Do not exhibit necking
- Tend to fracture shortly after the elastic limit
Understanding the difference between ductile and brittle behavior is essential when selecting materials for structural or mechanical applications.
Importance of Necking in Material Testing
Necking provides crucial information about a material’s ductility and failure mode. Here’s why it’s important:
- Indicates ductility: The extent of necking reflects how much plastic deformation a material can undergo.
- Predicts failure point: Engineers can anticipate where a component might fail.
- Influences design choices: Materials that exhibit necking are preferred in applications requiring energy absorption (e.g., automotive crash zones).
Visual Indicators of Necking
During a tensile test, necking is often visible to the naked eye. Look for:
- A noticeable narrowing in the specimen
- Slower increase in elongation
- A dip in the stress-strain curve after the UTS
Engineering vs True Stress-Strain Curve
Feature | Engineering Curve | True Stress-Strain Curve |
---|---|---|
Stress Calculation | Load / Original Area | Load / Instantaneous Area |
After Necking | Stress decreases | Stress may continue to increase |
Useful for | Simple analysis, design | Detailed material modeling |
Applications of Necking Analysis in Industry
Necking isn’t just a lab phenomenon; it has real-world applications across industries:
1. Automotive Engineering
- Materials that exhibit necking absorb energy, making them suitable for crash safety zones.
- Necking data helps engineers design deformable zones that delay catastrophic failure.
2. Aerospace Engineering
- High-strength alloys used in aircraft must be tested for necking behavior to prevent mid-air failure.
- Fatigue testing incorporates necking studies for life-cycle prediction.
3. Manufacturing and Forming Processes
- In metal forming, understanding necking helps optimize processes like deep drawing and extrusion.
- Preventing premature necking ensures higher manufacturing yield.
The Science Behind Necking: Strain Localization
As the material stretches, strain is initially distributed uniformly. After UTS, any further deformation starts to concentrate in one region. This is called strain localization and is a key cause of necking.
Factors Influencing Necking:
- Material composition (ductility, crystalline structure)
- Temperature (higher temperatures may delay necking)
- Strain rate (fast tests may lead to quicker necking)
- Specimen geometry (thinner or notched specimens neck sooner)
These factors are crucial when simulating real-life conditions using finite element analysis (FEA).
Common Misconceptions about Necking
Let’s clarify some frequent misunderstandings:
- Myth: Necking means immediate failure.
- Fact: Necking is a precursor, not the final stage. There can be significant deformation before fracture.
- Myth: All materials show necking.
- Fact: Only ductile materials do. Brittle materials break with little or no plastic deformation.
- Myth: Stress always decreases after UTS.
- Fact: Only in engineering stress curves. In true stress analysis, it may increase during necking.
Topics covered in the blog, do suggest us in the comments if we have missed something in this blog
- What is necking in ductile materials
- When does necking occur in tensile test
- Necking region in stress strain curve
- Difference between engineering and true stress during necking
- Necking behavior in mild steel
- Importance of necking in material testing
- Applications of necking in engineering design
Frequently Asked Questions (FAQ)
Q1: Why does necking occur after the ultimate tensile strength?
A: Because the material can no longer withstand uniform stress distribution; the weakest section starts to thin, concentrating strain.
Q2: Can necking be prevented?
A: In some applications, yes—by using materials with higher strength or by heat treatment. However, necking is often a natural behavior of ductile materials.
Q3: Is necking good or bad in engineering materials?
A: It depends. Necking in ductile materials allows for warning before failure, which can be advantageous in design. In brittle materials, sudden fracture without necking is more dangerous.
Q4: How does necking affect product design?
A: Designers account for necking in high-stress components by selecting appropriate materials and adding safety factors.
Q5: How do engineers test for necking?
A: Through tensile testing using universal testing machines, engineers observe the stress-strain curve and note the onset of necking after UTS.
Conclusion: Necking – A Critical Insight into Material Behavior
Understanding what is necking in stress strain curve is vital for engineers, designers, and researchers. Necking signals the transition from uniform to localized deformation and provides important insights into a material’s ductility, strength, and failure behavior.
Whether you’re testing metals, polymers, or composites, identifying and interpreting necking on the stress-strain curve can guide better material selection and safer product design.
